Vertical Machine “Minivert”

//Vertical Machine “Minivert”

Vertical Machine “Minivert”

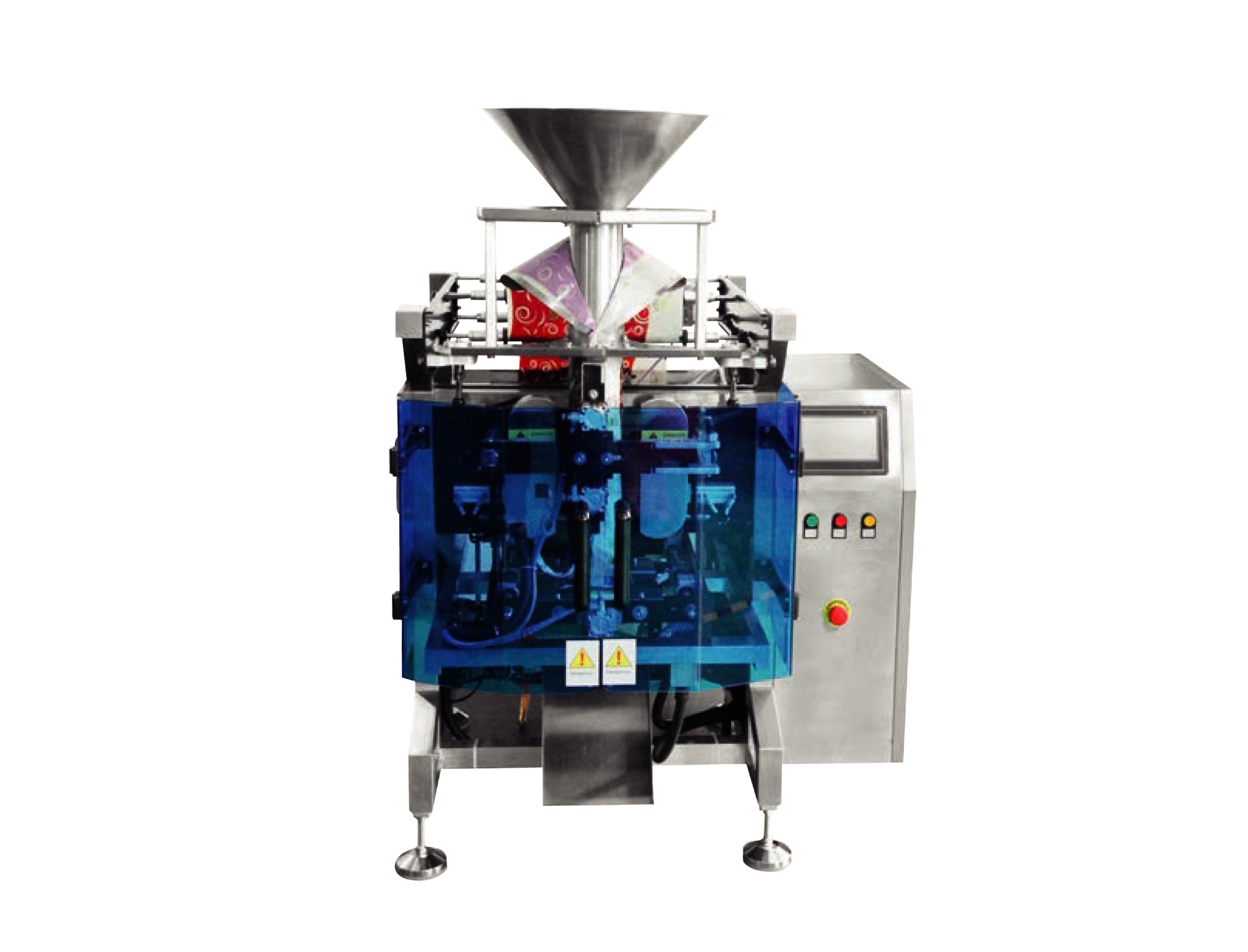

Automatic vertical packaging machine Model: 420 MINIVERT
Machine combined with multiple loading systems.
Usable lm: Polythene and coupled in general.
Pneumatic welding.
Loading Automatic dispensers for various types of powders, granules and food of any size.

Category:

Product Description

Dimensions packaging:
Envelope Height : 80 to 1,600 mm adjustable by touch screen
Bag width : from 50 mm to 130mm with the use of forming tubes on request
Speed: 10 to 35 minutes packs
Installed Power : 380 V, 3 KW

Standard Features:
1) standard photocell mark for reading printed lm
2) Advance movie with motorized wheels with servo motor
3) The machine is equipped with a photocell standard mark for reading printed lm
4) The machine comes standard with a forming tube envelope width 130 mm , other pipes on request
5) Size envelope with sealing pillow type center back and bottom 10 mm or square bottom on request
6) Equipped with standard protections for workers
7) All funxzioni are controlled by PLC and touch screen Panasonic “E- Wiew “
8) Structure in stainless steel

Download the catalogue: Minivert
